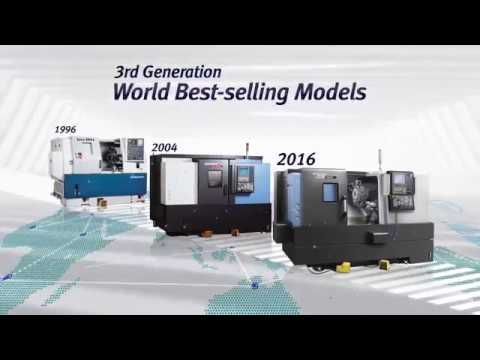

DN Solutions Lynx 2100, 2100L
Product Overview
6~8ʺ High-performance Compact Turning Center
– High-precision heavy duty cutting enabled via high-speed, high-power spindles
– Shorter turning time enabled via the servo turret indexing motor and the high-rigidity roller-type LM guide
– User convenience improved via an ergonomic control panel, USB ports and control panel rotation
– Manufacturing of diverse pieces with complex structures via the added Y-axis; shorter turning time
Specifications
| Classification | Unit | Lynx 2100 | Lynx 2100L |
|---|---|---|---|
| Max. Turning Diameter | mm | 350 | 350 |
| Max. Turning Length | mm | 330 | 550 |
| Standard Chuck Size | inch | 6 / 8 | 6 / 8 |
| Bar Working Diameter | mm | 51 / 65 | 51 / 65 |
| Max. Spindle Speed | r/min | 6000 / 4500 | 6000 / 4500 |
| Max. Spindle Motor Power | kW | 15 | 15 |
| NC System | – | FANUC / SIEMENS | FANUC / SIEMENS |
| Machining Capability | – | Standards, M | Standards, M, MS |
| Capability Description | – | M : Milling | M : Milling S : Sub-spindle |
* Product specifications are subject to change depending on additional functions and options.
