DN Solutions NX 5500 II, 6500 II
Product Overview

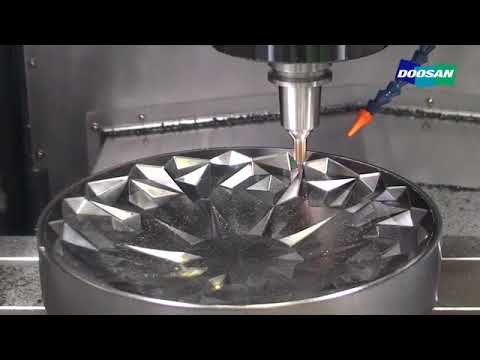

High-speed Machining Center for Mold Manufacturing– Stable structure of a symmetrical double column type
– High-speed built-in spindle with diverse specifications
– Effective thermal displacement compensation
– High-rigidity roller guide for all axes
Specifications
| Classification | Unit | NX 5500 II | NX 6500 II |
|---|---|---|---|
| Travel (X / Y / Z) |
mm | 900 / 550 / 500 | 1050 / 650 / 550 |
| Tooling Taper | taper | 40 | 40 |
| Table Size | mm | 1000 x 550 | 1200 x 650 |
| Max. Spindle Speed | r/min | 20000 | 20000 |
| Max. Spindle Motor Power | kW | 22 | 22 |
| Tool Storage Capacity | ea | 30 | 30 |
| NC System | – | FANUC / HEIDENHAIN | FANUC / HEIDENHAIN |
* Product specifications are subject to change depending on additional functions and options.
