Self-loading Chucker
MV Series
Revolutionizing the Production Line! A New Approach Towards Modular, Economical Line Planning.
 MV120 |
 MV200 |
Features
A new approach towards modular line planning
Walkthrough Operation 2.4 (MV120)/ 3.0(MV200) seconds
Fatigueless, easy and quick part handling outside the machine during machining
Compact space saving design with floor width 980 (MV120)/ 1150 mm(MV200)
MV Series Machine Models
| MV Series | Chuck size |
|---|---|
| MV120 | 8″ Chuck |
| MV120M | 8″ Chuck, with live tool |
| MV200 | 10″ Chuck |

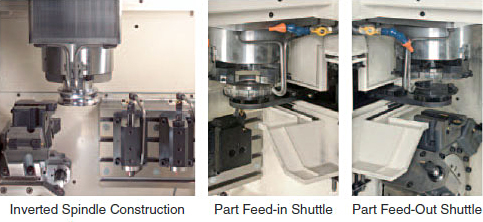

MV series is an external manual place & pick self-loading chucker with fully automatic and stable self-load/ unload of part by spindle chuck.
Fatigueless, easy external part place & pick opeartion in just 2.4 seconds.(MV120)
|
MV120 |
MV120M |
MV200 | ||||||
|---|---|---|---|---|---|---|---|---|
|
Chuck size |
210 mm(8″) |
254 mm(10″) |
||||||
|
Standard work size |
dia.140 mm x 80 mmL |
dia.200 mm x 100 mmL |
||||||
|
Number of turret stations |
8 |
10 [ 8 usable stations ] |
||||||
|
Max. Spindle speed |
4000 rpm |
3500 rpm |
||||||
|
Spindle motor |
STD : 7.5 kW / 30 min |
STD : 15 kW / 30 min |
||||||
|
Customized tool plate size |
350 mm(W) x 245 mm (H) |
300mm(W) x 260 mm (H) |
||||||
|
Live tool motor power |
– |
2,5kW |
– |
|||||
|
Live tool speed |
– |
4000 rpm |
– |
|||||
Need to see more product information or to request high-quality printed copy, please contact us
